MERCUSYS MC500 Outdoor Pan/Tilt Security Wi-Fi Camera

MERCUSYS MC500 Outdoor Pan/Tilt Security Wi-Fi Camera is an outdoor Wi-Fi security camera designed for monitoring homes, entrances, yards, and other exterior areas. It records video at up to 1080p Full HD and combines 360° horizontal coverage, pan and tilt movement, motion and person detection, color night vision, two-way audio, and local or cloud storage.

The camera provides 360° horizontal pan coverage and up to 130° vertical tilt coverage, allowing a single camera to monitor a broad area. Its motorized design also supports motion tracking and preset patrol routes to help keep moving subjects within view.

For nighttime monitoring, the MC500 combines color night vision with an 850 nm IR LED that provides night vision up to 98 ft / 29.9 m. It also supports motion detection, person detection, and customizable activity zones for more focused event monitoring.

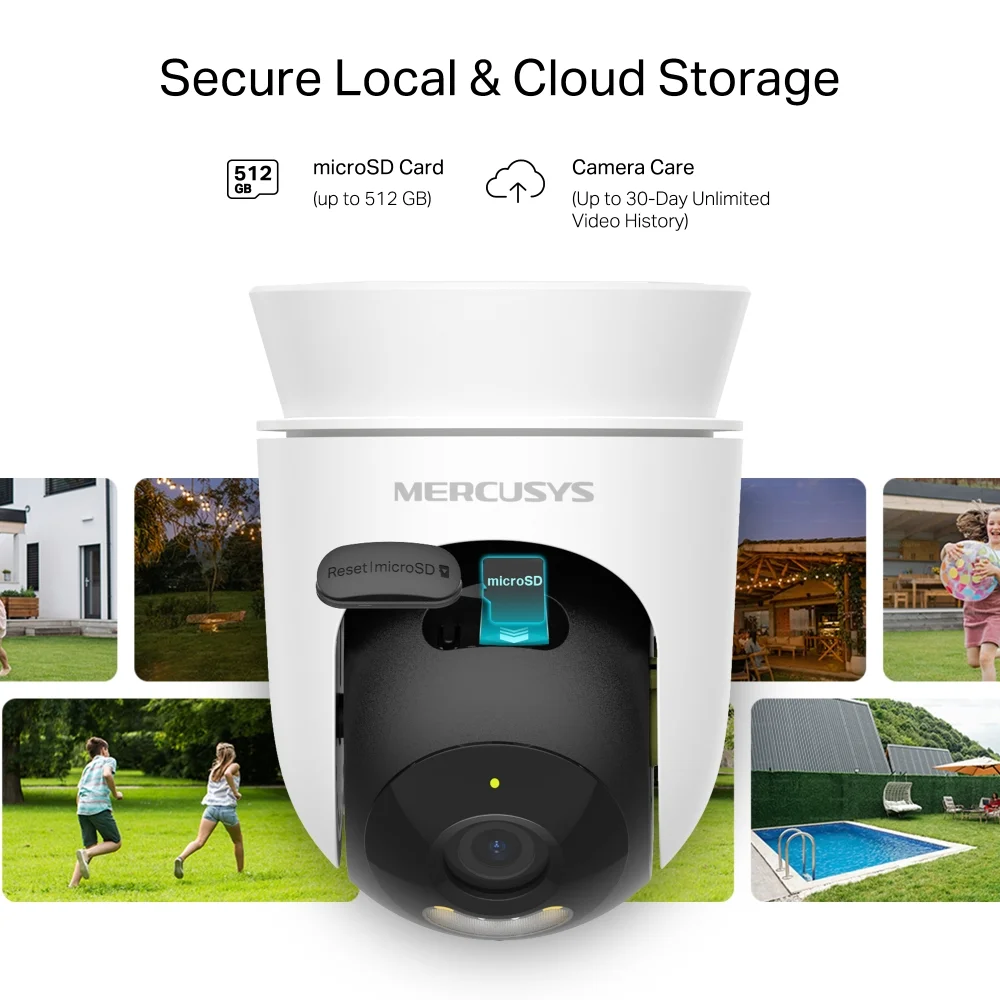

The MC500 is rated IP65 for outdoor use and can be mounted on a wall, ceiling, or pole. It supports microSD cards up to 512GB for local recording, as well as MERCUSYS Camera Care cloud storage with a subscription. A physical lens shield provides a privacy mode when monitoring is not required.

The camera connects over Wi-Fi and also supports RTSP and ONVIF, making it suitable for compatible monitoring and network video environments. Two-way audio with noise cancellation allows users to communicate remotely through the built-in microphone and speaker.

Key Features

• 1080p Full HD video resolution
• 360° horizontal pan coverage
• Up to 130° vertical tilt coverage
• Smart motion and person tracking
• Motion detection
• Person detection
• Customizable activity zones
• Full-color night vision
• IR night vision up to 98 ft / 29.9 m
• Up to 9× digital zoom
• Two-way audio with noise cancellation
• Built-in microphone and speaker
• 88 dB siren
• IP65 weather resistance
• Local storage with microSD cards up to 512GB
• MERCUSYS Camera Care cloud storage support
• Physical lens shield for privacy
• RTSP and ONVIF support
• Google Assistant and Amazon Alexa integration
• Wall, ceiling, or pole mounting
• 2.4 GHz Wi-Fi connectivity

Buyer Use Case

Best For: Homeowners, small businesses, and property managers who need outdoor monitoring with wide-area coverage, night visibility, motion/person detection, and remote access over Wi-Fi.

The MC500 is particularly suitable for entrances, front yards, gardens, driveways, balconies, outdoor corridors, and other exterior areas where a fixed-position camera may leave blind spots. Its pan/tilt movement, tracking, outdoor-rated housing, and local microSD recording make it suitable for users who want broader outdoor coverage from a single camera.

Specifications

Brand: MERCUSYS
Model: MC500
Version: V1
Product Type: Outdoor Pan/Tilt Security Wi-Fi Camera
Image Sensor: 1/32″ Progressive Scan CMOS
Lens: 4 mm, F2.0
Field of View: 87° diagonal / 74° horizontal / 40° vertical
Maximum Resolution: 1920 × 1080 pixels
Pan Range: 340° mechanical / 360° pan coverage
Tilt Range: 90° mechanical / 130° tilt coverage
Night Vision: 850 nm IR LED, up to 98 ft / 29.9 m; Color Night Vision
Digital Zoom: Up to 9×
Frame Rate: 15/20/25/30 fps; 15 fps by default
Video Compression: H.264
Image Enhancement: 3DNR, WDR
Audio: Built-in microphone and speaker
Audio Communication: Two-way audio with noise cancellation
Siren Volume: 88 dB at 4 in / 10 cm
Wireless Standard: 802.11b/g/n
Wireless Frequency: 2.4 GHz
Wireless Rates: 11 Mbps (802.11b), 54 Mbps (802.11g), 72.2 Mbps (802.11n)
Wireless Security: WPA/WPA2-PSK
Encryption: 128-bit AES with SSL/TLS
Local Storage: microSD card up to 512GB
Cloud Storage: MERCUSYS Camera Care Cloud Storage Services; subscription required
Detection: Motion Detection, Person Detection
Activity Zones: Supported for motion detection
RTSP: Supported
ONVIF: Supported
Power Supply: 9V DC
Input: 100–240V AC, 50/60Hz, 0.3A
Output: 9.0V / 0.85A
Weather Resistance: IP65
Mounting: Ceiling, wall, or pole
Operating Temperature: -20°C to 50°C
Operating Humidity: 10%–90% RH, non-condensing
Dimensions: 141.5 × 93 × 122 mm
Smart Integration: Google Assistant, Amazon Alexa
Certifications: CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Compatibility

The MERCUSYS MC500 connects to compatible 2.4 GHz Wi-Fi networks using 802.11b/g/n and is managed through the MERCUSYS app on supported devices. It can also integrate with compatible Google Assistant and Amazon Alexa devices.

For local recording, a compatible microSD card up to 512GB is required and is not included with the camera. Cloud storage requires a MERCUSYS Camera Care subscription. RTSP and ONVIF allow integration with compatible network video and monitoring systems.

The camera is designed for outdoor environments within its specified -20°C to 50°C operating temperature range and IP65 weather-resistance rating.
