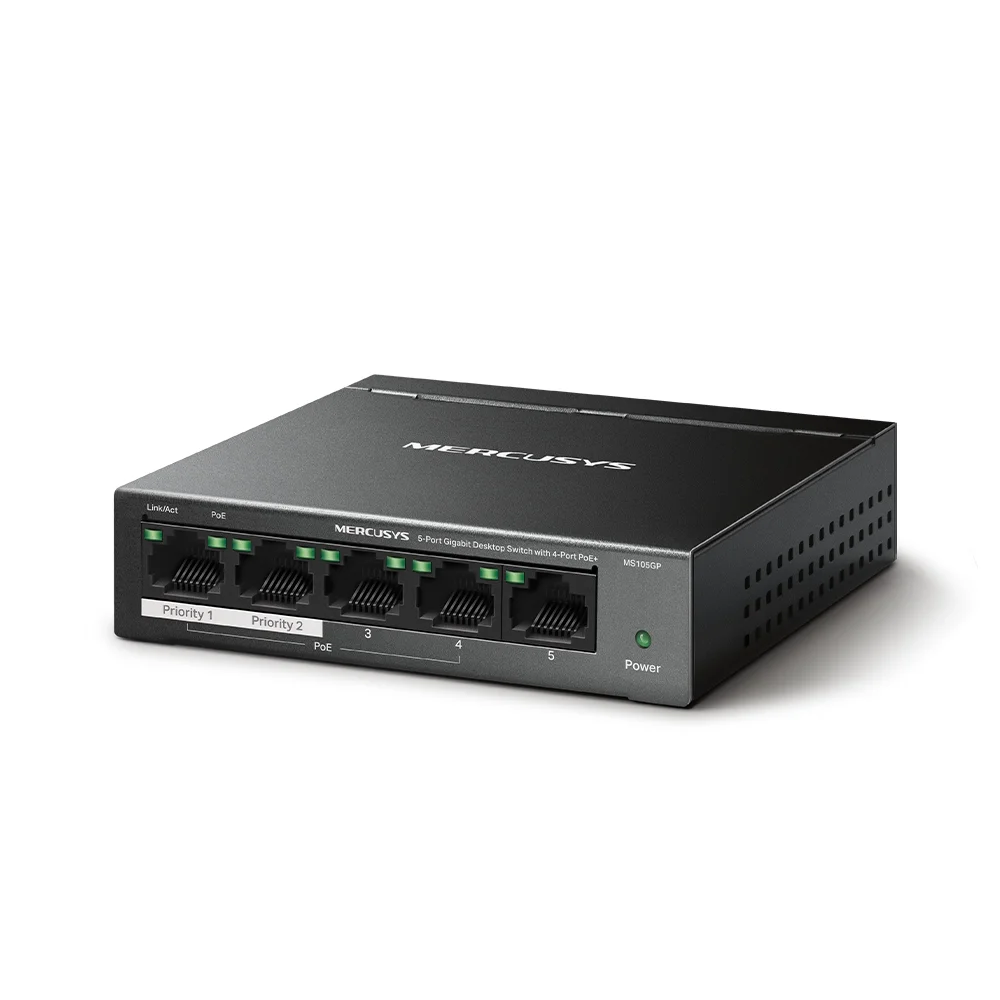

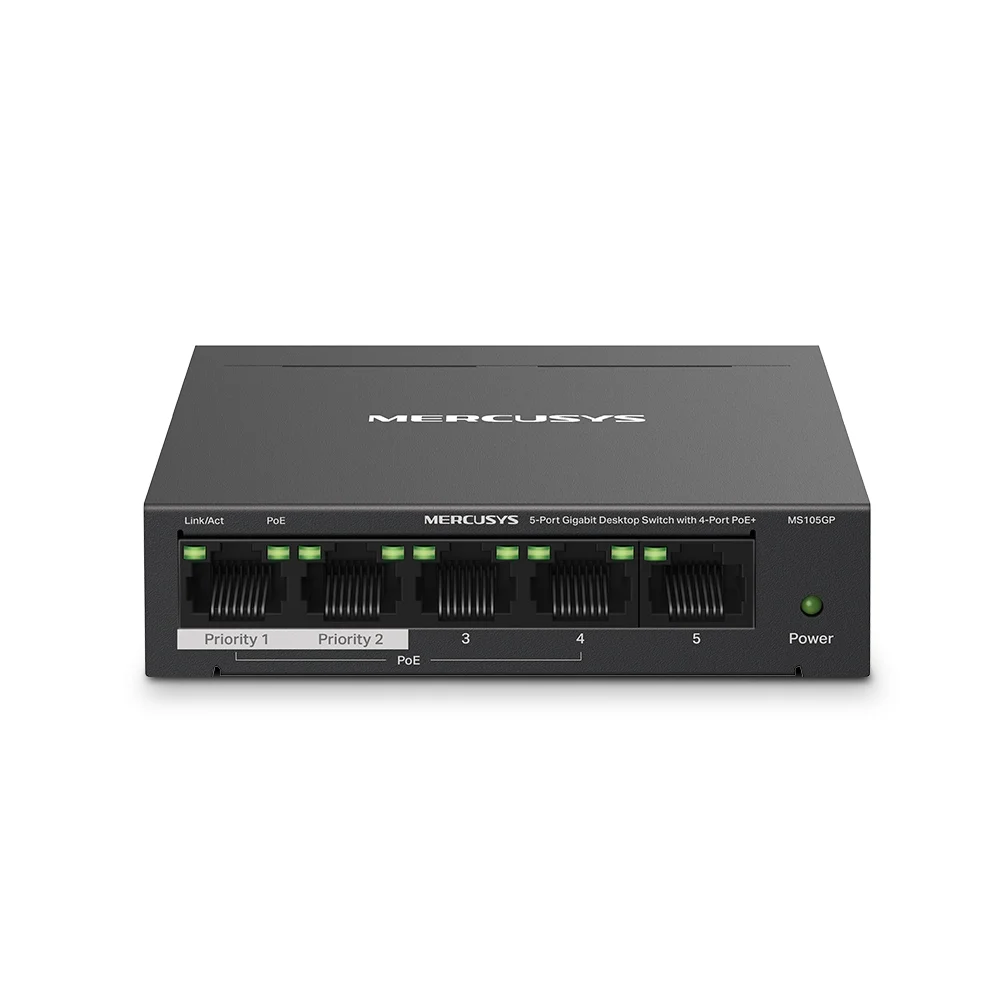

MERCUSYS MS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+

MERCUSYS MS105GP 5-Port Gigabit Desktop Switch With 4-Port PoE+ is a compact unmanaged network switch designed to provide Gigabit Ethernet connectivity and Power over Ethernet for compatible devices. It features five 10/100/1000 Mbps RJ45 ports, with four PoE+ ports capable of supplying up to 30W per port and a total PoE power budget of 65W.

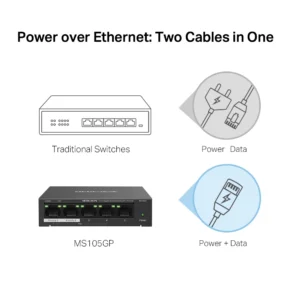

The MS105GP allows compatible PoE devices to receive both network data and electrical power through a single Ethernet cable, helping simplify installations for devices such as IP cameras, wireless access points, and IP phones. It supports IEEE 802.3af/at powered devices and includes automatic PoE recovery to restart compatible powered devices that become unresponsive.

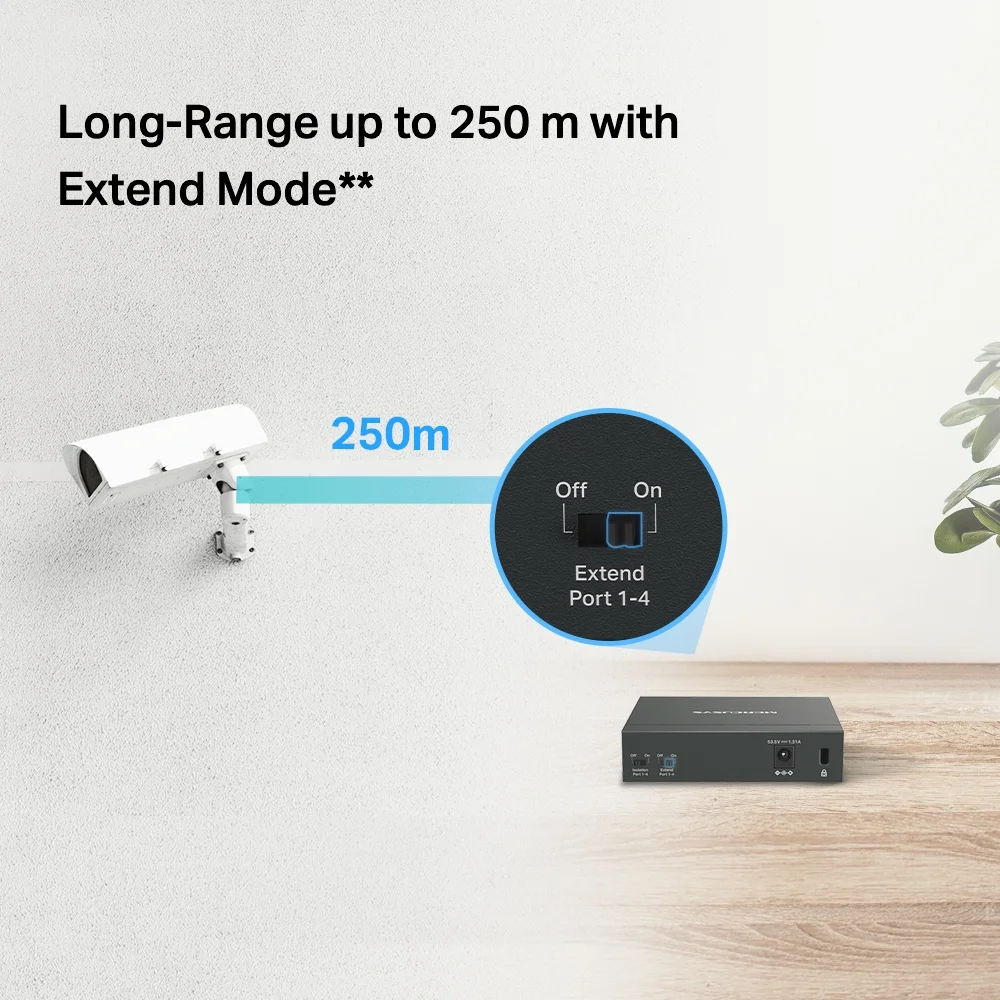

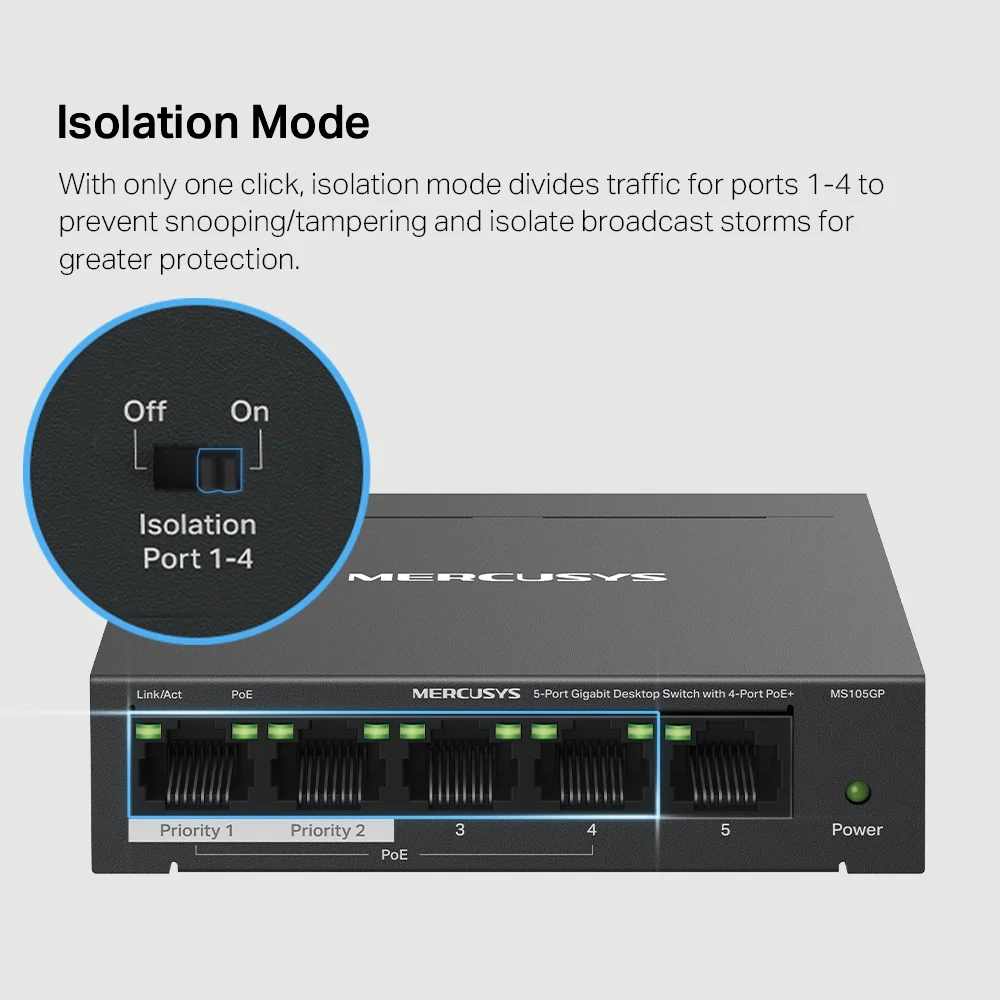

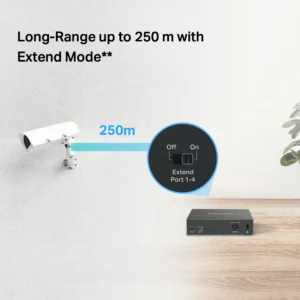

All five ports support Gigabit Ethernet, while the switch also provides Extend Mode, which can increase PoE transmission distance to up to 250 meters under supported conditions. When Extend Mode is enabled, the affected port speed is reduced to 10 Mbps. An Isolation Mode helps separate traffic between designated ports, and the switch uses a fanless metal enclosure for silent operation and heat dissipation.

The unmanaged plug-and-play design allows the MS105GP to be deployed without software configuration, making it suitable for small wired networks, surveillance systems, wireless access point installations, and other PoE-enabled network setups.

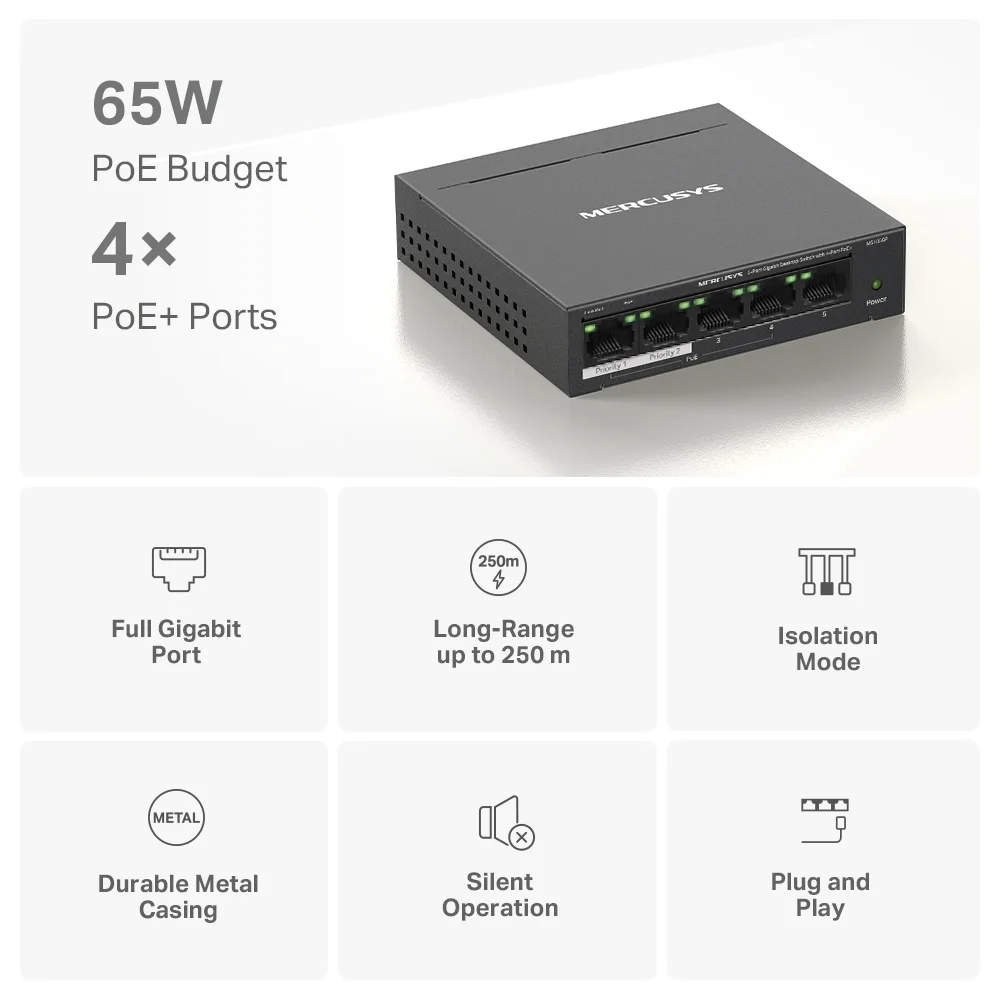

Key Features

• 5× 10/100/1000 Mbps Gigabit RJ45 ports
• 4× PoE+ ports on ports 1–4
• Up to 30W PoE power per port
• 65W total PoE power budget
• IEEE 802.3af/at PoE compatibility
• Up to 250m PoE transmission distance with Extend Mode
• PoE Auto Recovery
• Isolation Mode
• 802.3x Flow Control
• Store-and-forward forwarding
• 10 Gbps switching capacity
• 8K MAC address table
• Fanless silent operation
• Durable metal housing
• Plug and Play unmanaged operation
• Desktop or wall-mount installation

Buyer Use Case

Best For: Homes, small offices, retail locations, and surveillance installations that need to connect multiple Gigabit Ethernet devices while supplying PoE power to compatible IP cameras, access points, or IP phones.

The MS105GP is especially suitable when you want to reduce the need for separate power adapters and cables for compatible PoE devices while keeping Gigabit connectivity available for standard wired network equipment.

Specifications

Brand: MERCUSYS
Model: MS105GP
Product Type: 5-Port Gigabit Desktop Switch with 4-Port PoE+
Switch Type: Unmanaged
Interfaces: 5× 10/100/1000 Mbps RJ45 Ports
PoE Ports: Ports 1–4
PoE Standard: IEEE 802.3af/at
Maximum PoE Power per Port: 30W
Total PoE Power Budget: 65W
Switching Capacity: 10 Gbps
MAC Address Table: 8K, Auto-Learning and Auto-Aging
Forwarding Method: Store and Forward
Auto-Negotiation: Supported

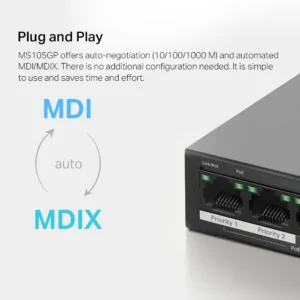

Auto MDI/MDIX: Supported
Flow Control: IEEE 802.3x
Extend Mode: Supported
Isolation Mode: Supported
PoE Auto Recovery: Supported
Jumbo Frame: Up to 9 KB
Cooling: Fanless
LED Indicators: Power, Link/Act, PoE Status
Installation: Desktop / Wall Mount

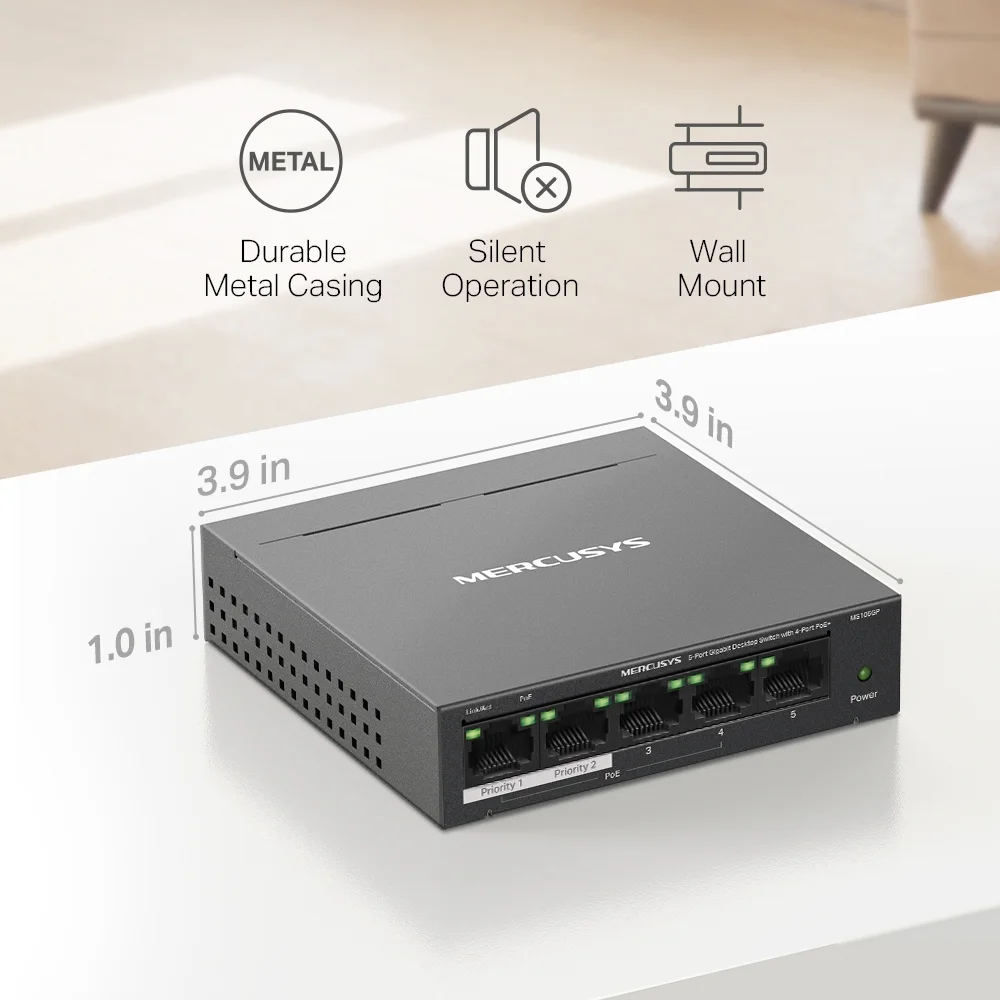

Dimensions: 99.8 × 98 × 25 mm

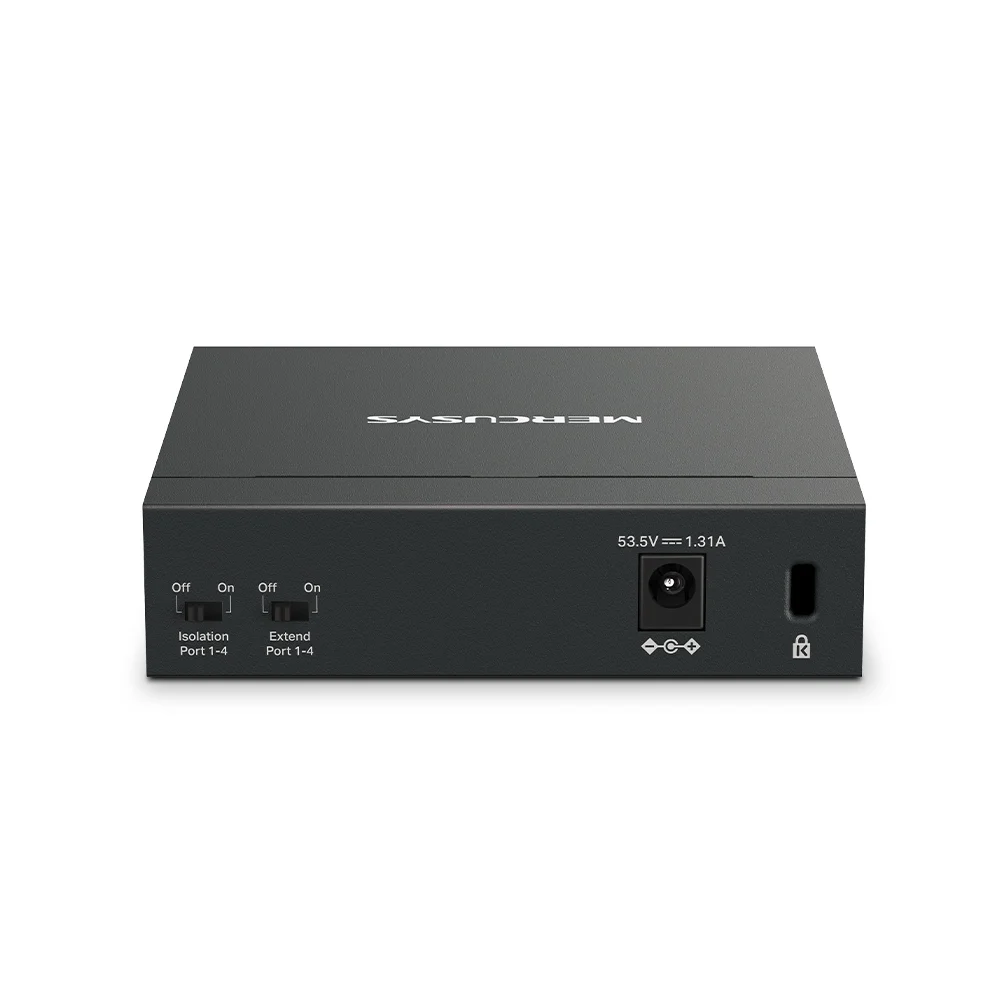

External Power Supply: 53.5V/1.31A
Operating Temperature: -10°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH, non-condensing
Storage Humidity: 5%–95% RH, non-condensing
Certifications: CE, RoHS
Package Contents: MS105GP Switch, Power Adapter, Power Cord, Rubber Feet, Quick Installation Guide

Important Performance Limitation

PoE Power Limitation: The switch supports up to 30W on an individual PoE port and a 65W total PoE budget across all four PoE ports. The actual available PoE power can vary depending on connected devices and operating conditions.

Extend Mode Limitation: While Extend Mode can increase PoE transmission distance to up to 250 meters under supported conditions, the network speed of ports operating in Extend Mode is reduced to 10 Mbps. Actual transmission distance also depends on Ethernet cable quality and the power requirements of the connected PoE devices.

Compatibility

The MERCUSYS MS105GP is compatible with Ethernet devices using 10/100/1000 Mbps connections and IEEE 802.3af/at PoE standards.

Compatible devices can include:

• IP cameras
• Wireless access points
• IP phones
• Network video recorders
• Desktop computers
• Laptops with Ethernet
• Printers
• Other Ethernet-enabled network devices

PoE power is available through ports 1–4 for compatible IEEE 802.3af/at powered devices. Non-PoE Ethernet devices can use the switch’s Gigabit ports for data connectivity.
