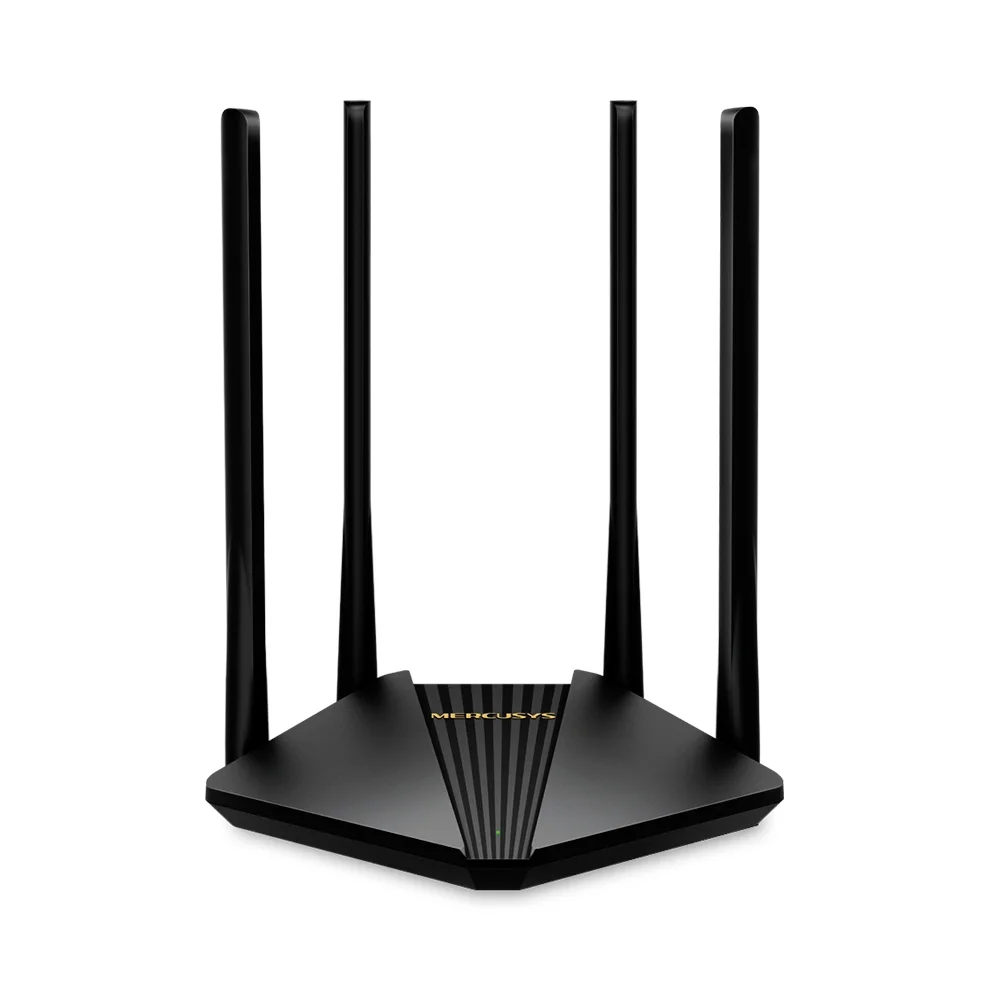

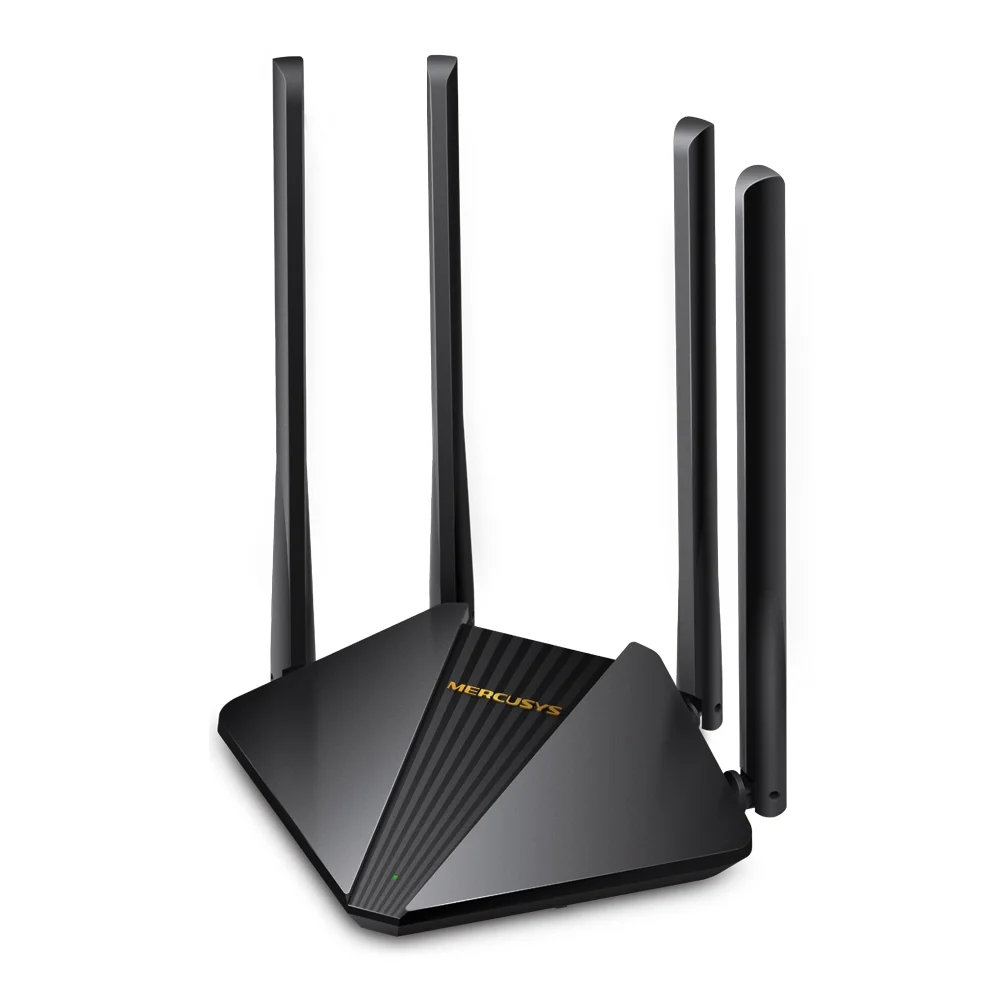

MERCUSYS MR30G AC1200 Wireless Dual Band Gigabit Router

MERCUSYS MR30G AC1200 Wireless Dual Band Gigabit Router provides dual-band Wi-Fi connectivity with combined wireless speeds of up to 1200 Mbps, including 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. It supports the IEEE 802.11ac standard and is designed for home networks with multiple connected devices.

The MR30G features four external 5 dBi high-gain antennas with Beamforming to focus wireless signals toward connected devices. It also supports MU-MIMO, allowing the router to communicate with multiple compatible devices simultaneously to improve network efficiency.

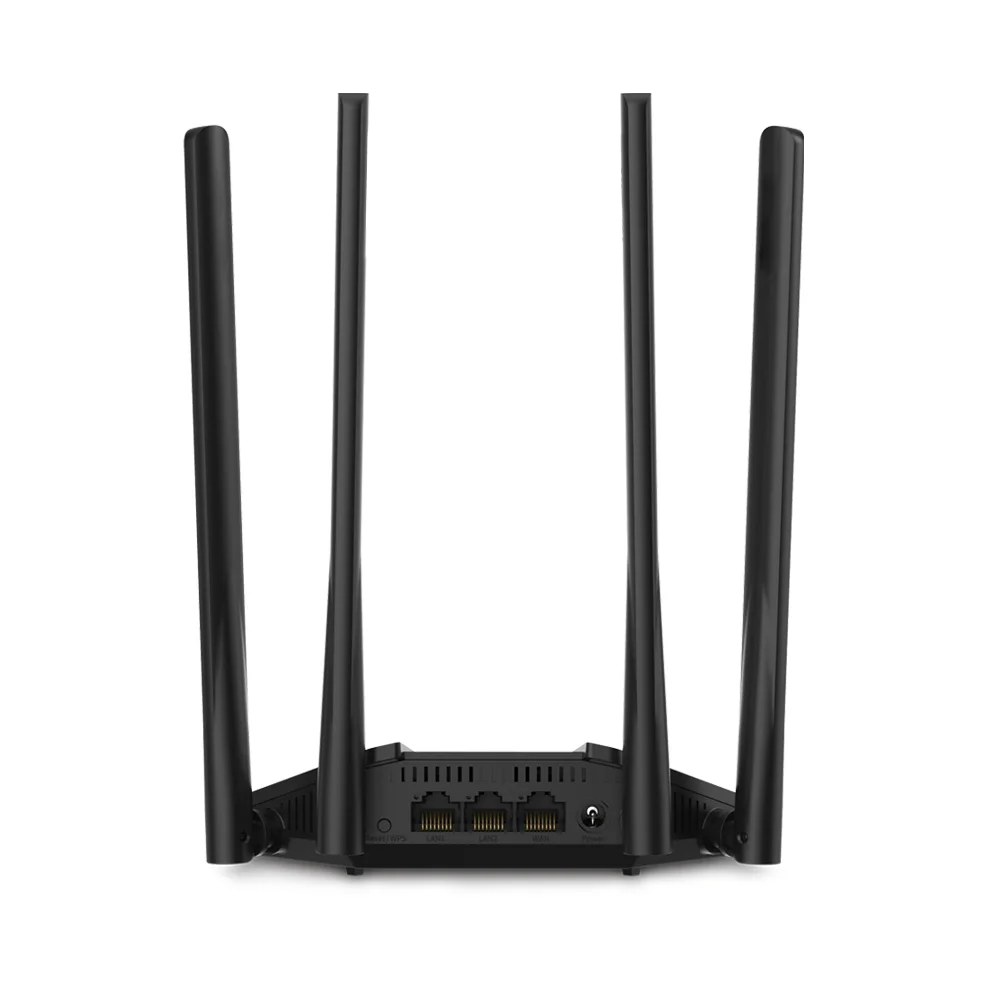

For wired networking, the router provides one Gigabit WAN port and two Gigabit LAN ports, allowing compatible wired devices to use Gigabit Ethernet connectivity. It also supports Router Mode and Access Point Mode for different network configurations.

Additional networking functions include parental controls, QoS, guest networks, IPv6 support, IPTV features, SPI firewall protection, and IP/MAC address binding. The MR30G is also compatible with EasyMesh, allowing it to participate in a compatible whole-home mesh network.

Key Features

• AC1200 dual-band Wi-Fi
• Up to 867 Mbps on 5 GHz
• Up to 300 Mbps on 2.4 GHz
• IEEE 802.11ac/n/a on 5 GHz
• IEEE 802.11b/g/n on 2.4 GHz
• 4× 5 dBi high-gain external antennas
• Beamforming
• MU-MIMO
• 1× Gigabit WAN port
• 2× Gigabit LAN ports
• Router Mode
• Access Point Mode
• EasyMesh compatibility
• Parental Controls
• Quality of Service (QoS)
• Guest Network
• IPTV support
• IPv6 support
• SPI Firewall
• IP and MAC Address Binding
• MERCUSYS App support

Buyer Use Case

Best For: Homes, apartments, and small networks that need a dual-band AC1200 router with Gigabit Ethernet for smartphones, laptops, smart TVs, gaming consoles, streaming devices, and other connected equipment.

The MR30G is suitable for users who need both fast 5 GHz Wi-Fi and Gigabit wired connectivity, while features such as MU-MIMO, Beamforming, parental controls, and Access Point Mode provide additional flexibility for a home network.

Specifications

Brand: MERCUSYS
Model: MR30G
Version: V1
Product Type: AC1200 Wireless Dual Band Gigabit Router
Wi-Fi Class: AC1200
2.4 GHz Speed: Up to 300 Mbps
5 GHz Speed: Up to 867 Mbps
Wireless Standards: IEEE 802.11ac/n/a (5 GHz); IEEE 802.11b/g/n (2.4 GHz)
Frequency Bands: 2.4 GHz + 5 GHz
Antennas: 4× 5 dBi Fixed Omni-Directional External Antennas
WAN Port: 1× Gigabit WAN
LAN Ports: 2× Gigabit LAN
Operation Modes: Router Mode, Access Point Mode
WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Wireless Security: WPA-PSK/WPA2-PSK
Guest Network: 2.4 GHz and 5 GHz
NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
Firewall: SPI Firewall, IP and MAC Address Binding
Button: WPS/Reset
Dimensions: 159.7 × 125.9 × 37.1 mm
Operating Temperature: 0°C–40°C
Operating Humidity: 10%–90%, non-condensing
Storage Humidity: 5%–90%, non-condensing
Package Contents: MR30G Router, Power Adapter, Quick Installation Guide, RJ45 Ethernet Cable

Important Speed Limitation

Speed Limitation: The advertised AC1200 speeds are theoretical maximum wireless link rates and are not guaranteed real-world internet or file-transfer speeds. Actual performance depends on the connected device, Wi-Fi standard, channel conditions, distance, interference, network traffic, and other environmental factors.

The 867 Mbps and 300 Mbps figures represent the maximum theoretical rates of the two wireless bands and should not be interpreted as a single-device 1200 Mbps connection.

The router’s Gigabit Ethernet ports support up to 1000 Mbps link speed per port; actual throughput depends on the connected equipment, cabling, network conditions, and internet service.

Compatibility

The MERCUSYS MR30G is compatible with Wi-Fi devices supporting 802.11ac/a/b/g/n standards across the 2.4 GHz and 5 GHz bands.

Compatible devices include:

• Smartphones and tablets
• Laptops and desktop computers with compatible Wi-Fi
• Smart TVs and streaming devices
• Gaming consoles and gaming PCs
• Wireless printers
• Other compatible Wi-Fi devices

Wired devices can connect through the router’s Gigabit WAN and LAN ports. Wi-Fi features such as MU-MIMO and Beamforming depend on compatible client devices and network conditions.

EasyMesh functionality requires compatible EasyMesh devices and supported firmware.
