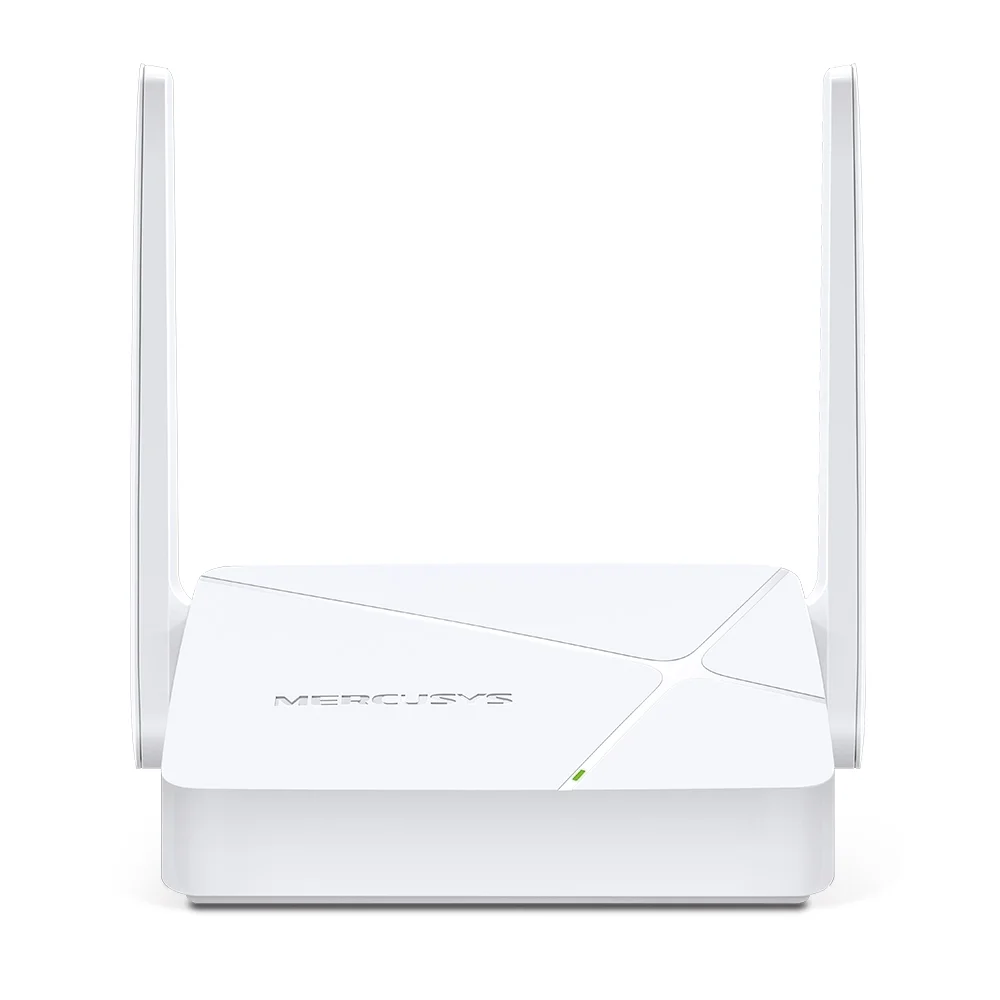

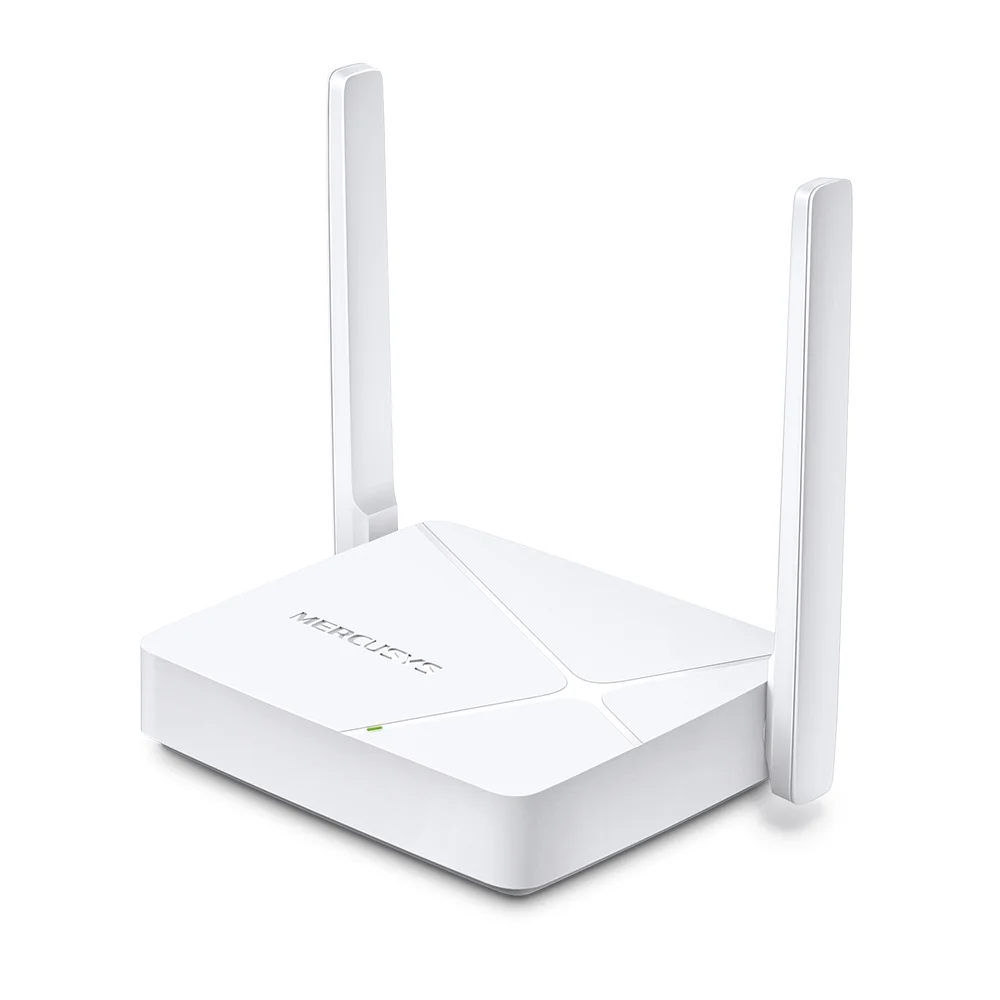

MERCUSYS MR20 AC750 Wireless Dual Band Router

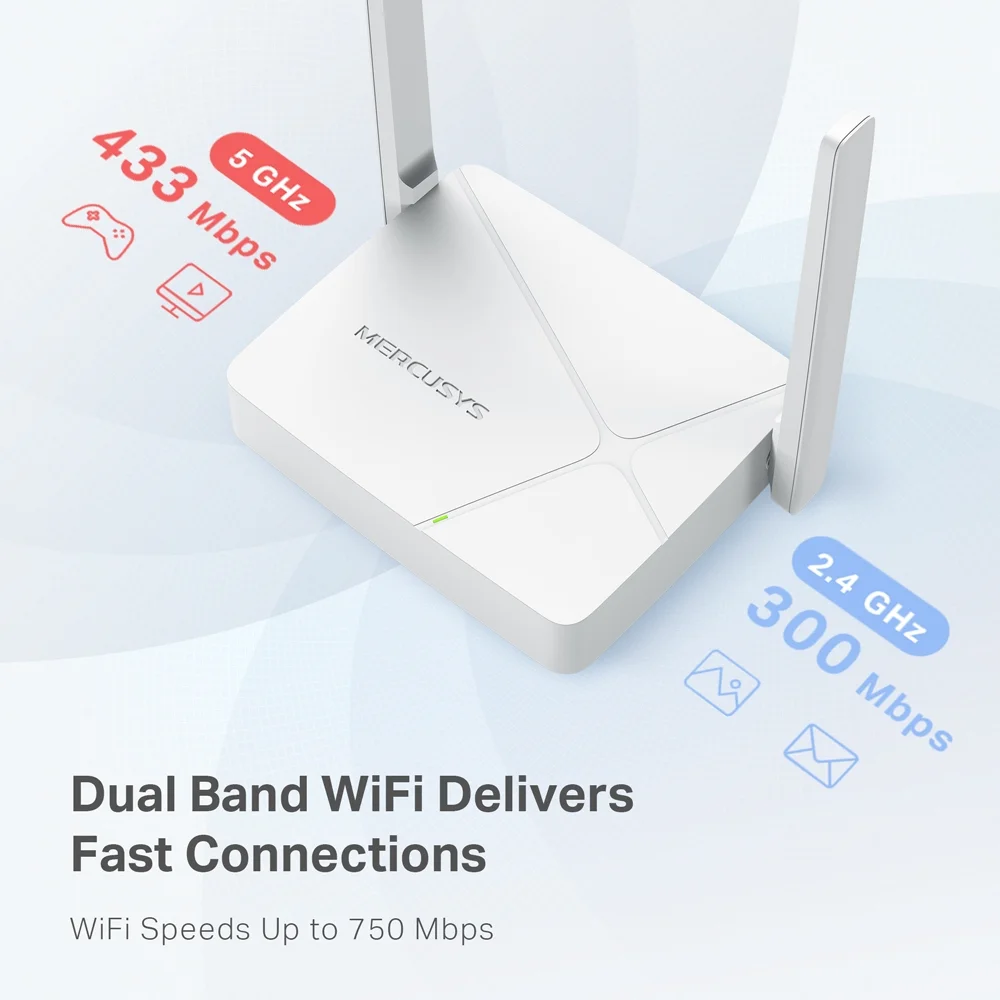

MERCUSYS MR20 AC750 Wireless Dual Band Router provides reliable dual-band Wi-Fi connectivity for homes and small networks. It delivers combined AC750 wireless speeds of up to 300 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, providing flexibility for everyday browsing, online communication, streaming, gaming, and other connected-device activities.

The 2.4 GHz band provides wider compatibility and is suitable for everyday internet use, while the faster 5 GHz band is designed for bandwidth-intensive activities such as HD streaming and gaming. The MR20 supports the 802.11ac/a/b/g/n wireless standards, allowing it to work with a broad range of Wi-Fi devices.

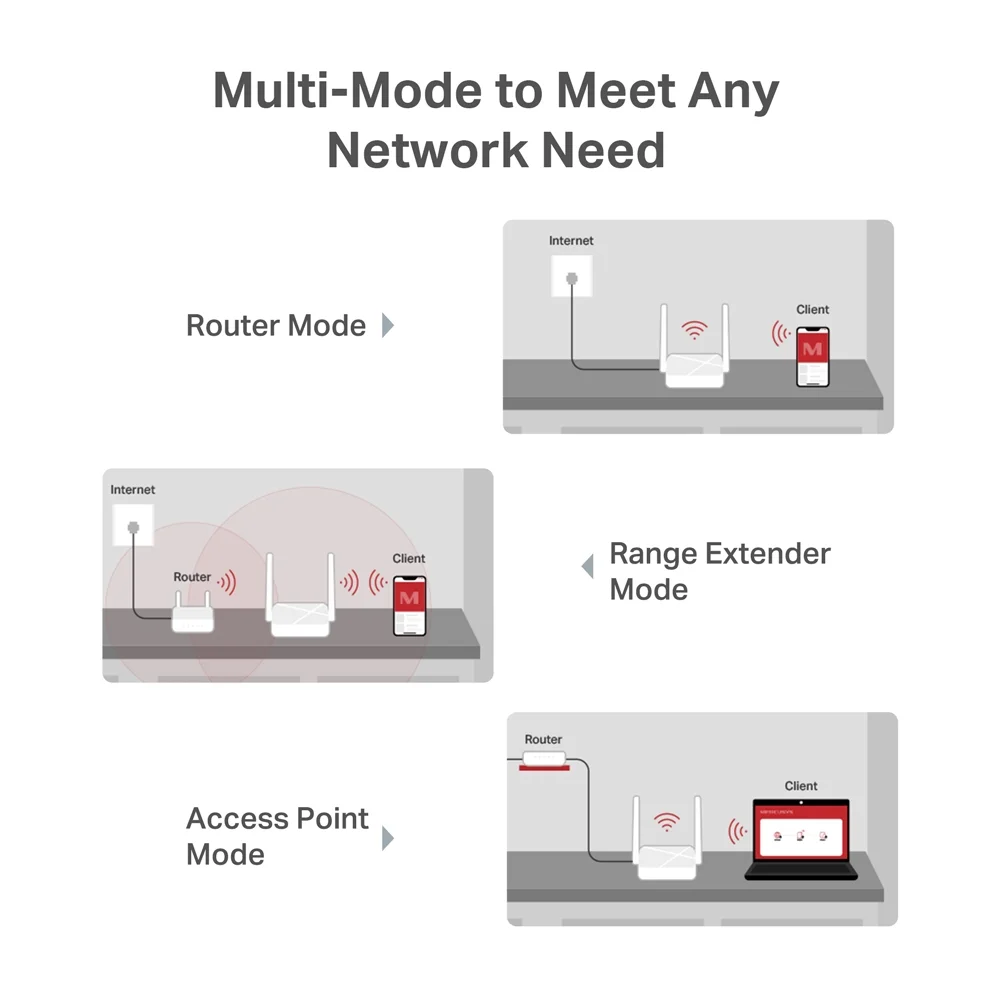

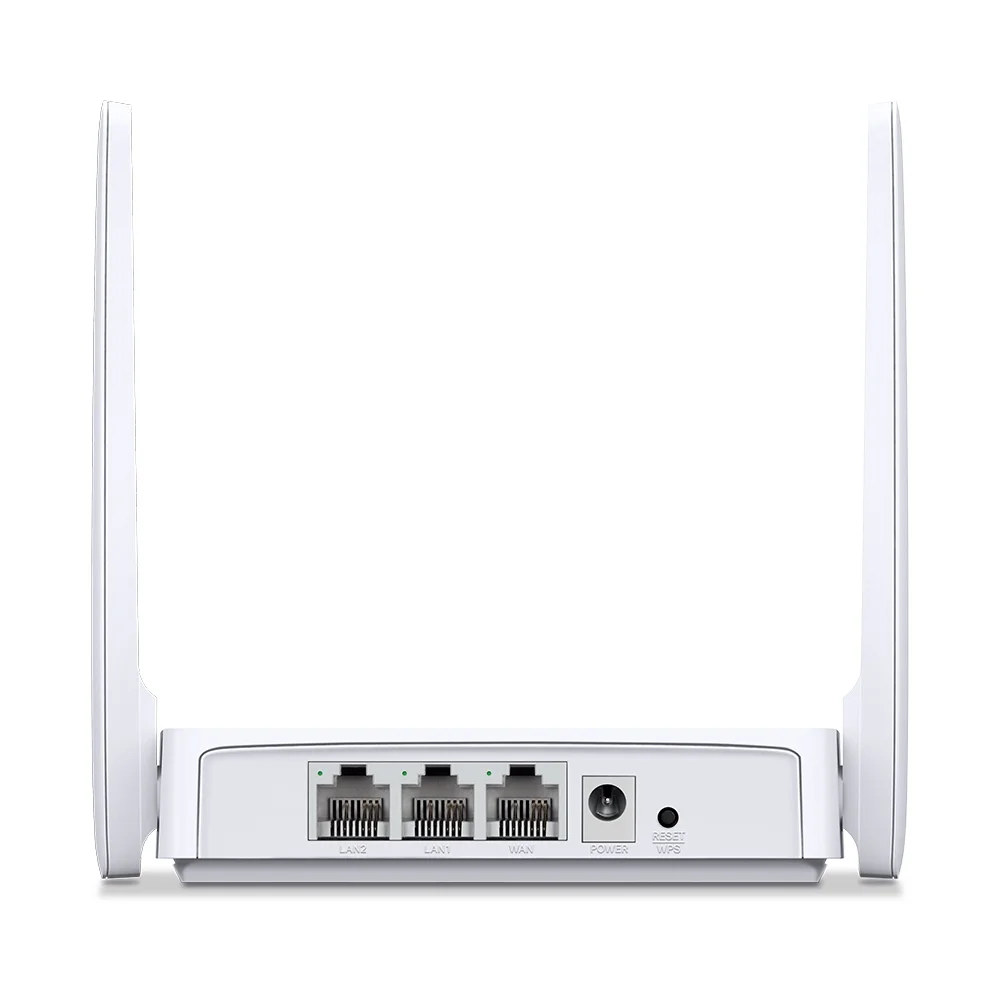

The router includes one 10/100 Mbps WAN port and two 10/100 Mbps LAN ports for connecting wired devices. It supports multiple operating modes, including Router Mode, Access Point Mode, and Range Extender Mode, allowing the device to be adapted to different network configurations.

Wireless security features include WPA/WPA2/WPA3 support, while additional networking functions include guest networking, access control, parental controls, DHCP, NAT forwarding, SPI firewall protection, and IP/MAC address binding.

Key Features

• AC750 dual-band Wi-Fi
• Up to 300 Mbps on 2.4 GHz
• Up to 433 Mbps on 5 GHz
• Supports IEEE 802.11ac/a/b/g/n
• 2× 5 dBi fixed omni-directional antennas
• Router Mode
• Access Point Mode
• Range Extender Mode
• 1× 10/100 Mbps WAN port
• 2× 10/100 Mbps LAN ports
• WPA/WPA2/WPA3 wireless security
• Guest network support
• Parental controls
• Access control
• SPI firewall
• IP and MAC address binding
• NAT forwarding
• DHCP server and client list
• WPS/Reset button

Buyer Use Case

Best For: Homes and small spaces that need an affordable dual-band Wi-Fi router for everyday internet access, streaming, gaming, and connecting smartphones, laptops, smart TVs, and other wireless devices.

The MR20 is also suitable for users who need flexibility beyond standard router operation, since it can work as a Router, Access Point, or Range Extender depending on the network setup.

Specifications

Brand: MERCUSYS
Model: MR20
Product Type: AC750 Wireless Dual Band Router
Wi-Fi Class: AC750
2.4 GHz Speed: Up to 300 Mbps
5 GHz Speed: Up to 433 Mbps
Wireless Standards: IEEE 802.11ac/a/b/g/n
Frequency Bands: 2.4 GHz + 5 GHz
Antennas: 2× 5 dBi Fixed Omni-Directional Antennas
WAN Port: 1× 10/100 Mbps
LAN Ports: 2× 10/100 Mbps
Wireless Security: WPA-PSK/WPA2-PSK/WPA3
Operation Modes: Router Mode, Range Extender Mode, Access Point Mode
WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Guest Network: 2.4 GHz and 5 GHz
NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
Firewall: SPI Firewall
Button: WPS/Reset
Dimensions: 114 × 94 × 26 mm
Operating Temperature: 0°C–40°C
Operating Humidity: 10%–90%, non-condensing
Storage Humidity: 5%–90%, non-condensing

Important Speed Limitation

Speed Limitation: The advertised AC750 wireless speeds are theoretical maximum link rates, not guaranteed internet speeds. Actual wireless performance depends on the connected device, Wi-Fi conditions, distance from the router, network interference, channel usage, and other environmental factors.

The MR20 also has 10/100 Mbps Ethernet ports, so wired connections through the WAN/LAN ports are limited to Fast Ethernet speeds and cannot deliver Gigabit Ethernet throughput.

Compatibility

The MERCUSYS MR20 is compatible with Wi-Fi devices using supported 802.11ac/a/b/g/n standards and both 2.4 GHz and 5 GHz wireless networks.

It can connect devices such as:

• Smartphones and tablets
• Laptops and desktop computers with compatible Wi-Fi
• Smart TVs and streaming devices
• Gaming consoles
• Printers and other Wi-Fi-enabled peripherals

The MR20 also supports wired devices through its 10/100 Mbps WAN and LAN ports.
