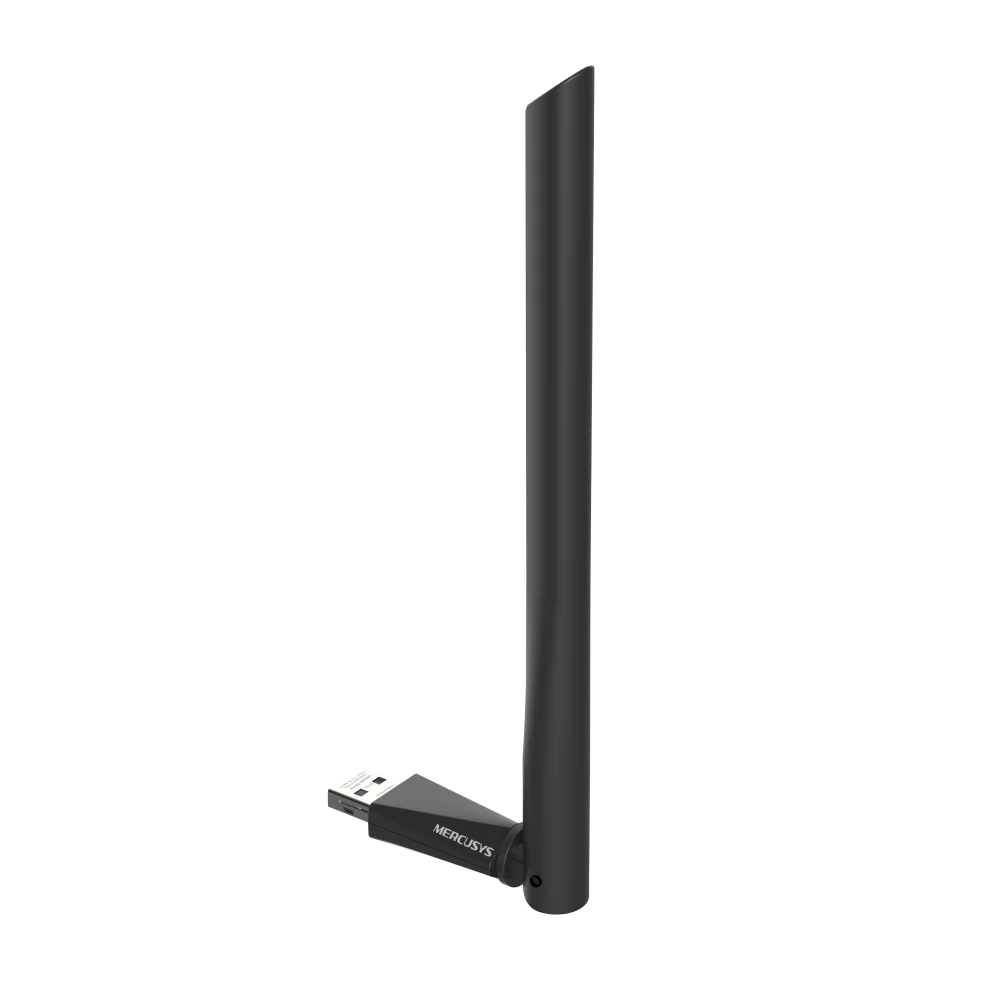

MERCUSYS MA30H AC1300 High Gain Wireless Dual Band USB Adapter

MERCUSYS MA30H AC1300 High Gain Wireless Dual Band USB Adapter adds fast dual-band Wi-Fi connectivity to compatible computers through a USB connection. It supports wireless speeds of up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band, making it suitable for web browsing, HD video streaming, online gaming, downloads, and other everyday network activities.

The MA30H features a high-gain 5 dBi external antenna with an adjustable multi-directional design, helping improve signal reception and wireless coverage compared with a traditional antenna. It also supports MU-MIMO for improved network efficiency when paired with a compatible MU-MIMO router or access point.

For security, the adapter supports WPA, WPA2, and WPA3-SAE wireless security. Its USB 2.0 interface and built-in Windows driver provide plug-and-play installation without requiring a CD on supported Windows systems.

Source: MERCUSYS official MA30H V1/V2 product specifications and datasheet.

Key Features

• AC1300 dual-band Wi-Fi
• Up to 867 Mbps on 5 GHz
• Up to 400 Mbps on 2.4 GHz
• 1× high-gain 5 dBi external antenna
• Adjustable multi-directional antenna

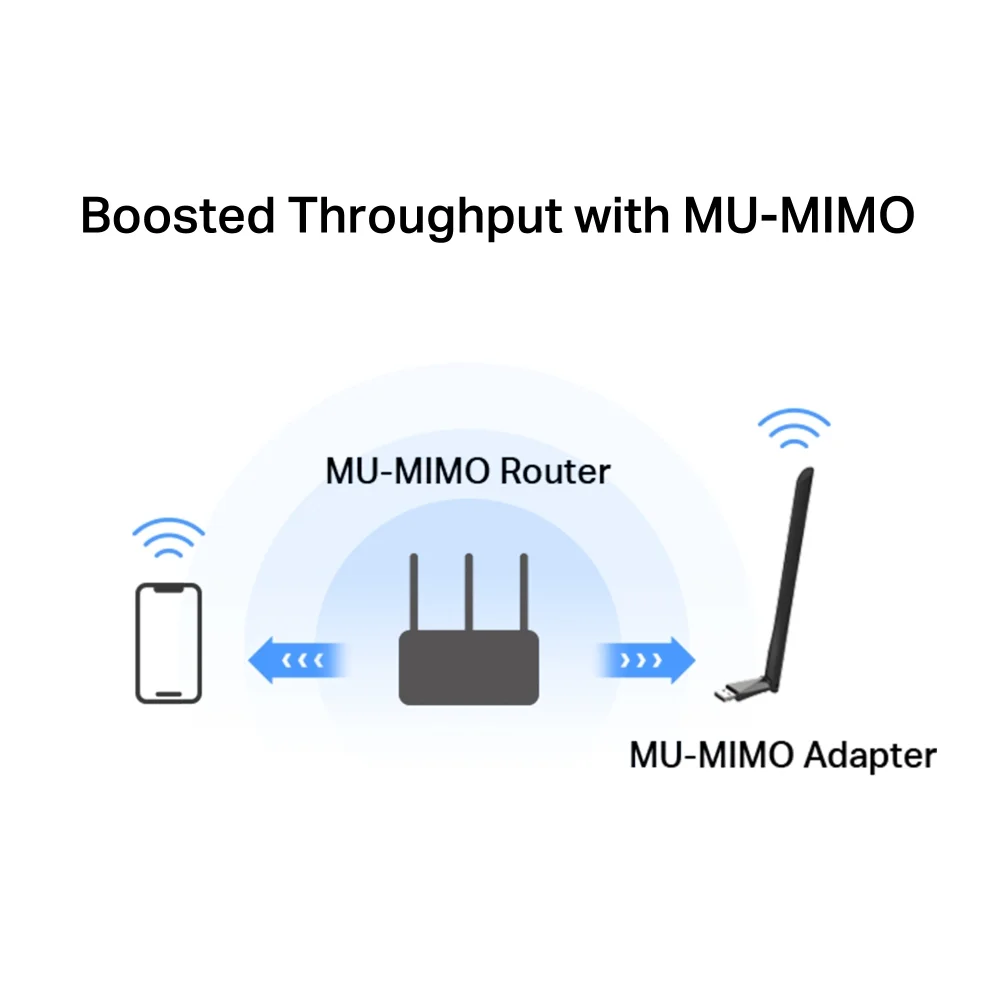

• MU-MIMO support
• WPA3-SAE wireless security
• USB 2.0 interface
• Plug and Play with built-in Windows driver
• No CD required for installation
• Supports IEEE 802.11ac/a/b/g/n standards
• Designed for Windows 10 and Windows 11

Specifications

Brand: MERCUSYS
Model: MA30H
Product Type: AC1300 High Gain Wireless Dual Band USB Adapter
Wi-Fi Class: AC1300
Wireless Standards: IEEE 802.11a/n/ac on 5 GHz; IEEE 802.11b/g/n on 2.4 GHz
Frequency Bands: 2.4 GHz + 5 GHz
Wireless Speed: Up to 867 Mbps on 5 GHz; up to 400 Mbps on 2.4 GHz
Antenna: 1× External High Gain 5 dBi Antenna
Antenna Design: Adjustable Multi-Directional
MU-MIMO: Supported
Wireless Security: WPA-PSK, WPA2-PSK, WPA3-SAE
Interface: USB 2.0
LED: Status LED
Dimensions: 57.8 × 16.8 × 173.4 mm
Supported Operating Systems: Windows 11/10 (32/64-bit)
Package Contents: MA30H AC1300 High Gain Wireless Dual Band USB Adapter, Quick Installation Guide

Windows Driver Limitation

Windows Compatibility Limitation: The MERCUSYS MA30H is officially supported on Windows 10 and Windows 11 (32/64-bit). MERCUSYS notes that the adapter’s functionality may be restricted on some computer systems and platforms and recommends updating the device driver when feature compatibility issues occur. MU-MIMO and WPA3 also require the connected access point to support the corresponding feature.

Compatibility

The MERCUSYS MA30H is designed for compatible computers with an available USB port and supports:

• Windows 11 (32/64-bit)
• Windows 10 (32/64-bit)
• 2.4 GHz Wi-Fi networks
• 5 GHz Wi-Fi networks
• Compatible 802.11a/b/g/n/ac wireless routers and access points

For full MU-MIMO functionality, the connected access point must support MU-MIMO. WPA3 also requires a compatible wireless access point. MERCUSYS recommends updating the adapter driver when necessary for feature compatibility.
