MERCUSYS AC10 AC1200 Dual Band Wireless Router

MERCUSYS AC10 AC1200 Dual Band Wireless Router delivers fast and stable wireless connectivity for everyday home networking, combining dual-band Wi-Fi with support for the 802.11ac standard. It provides wireless speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, with a combined AC1200-class wireless performance.

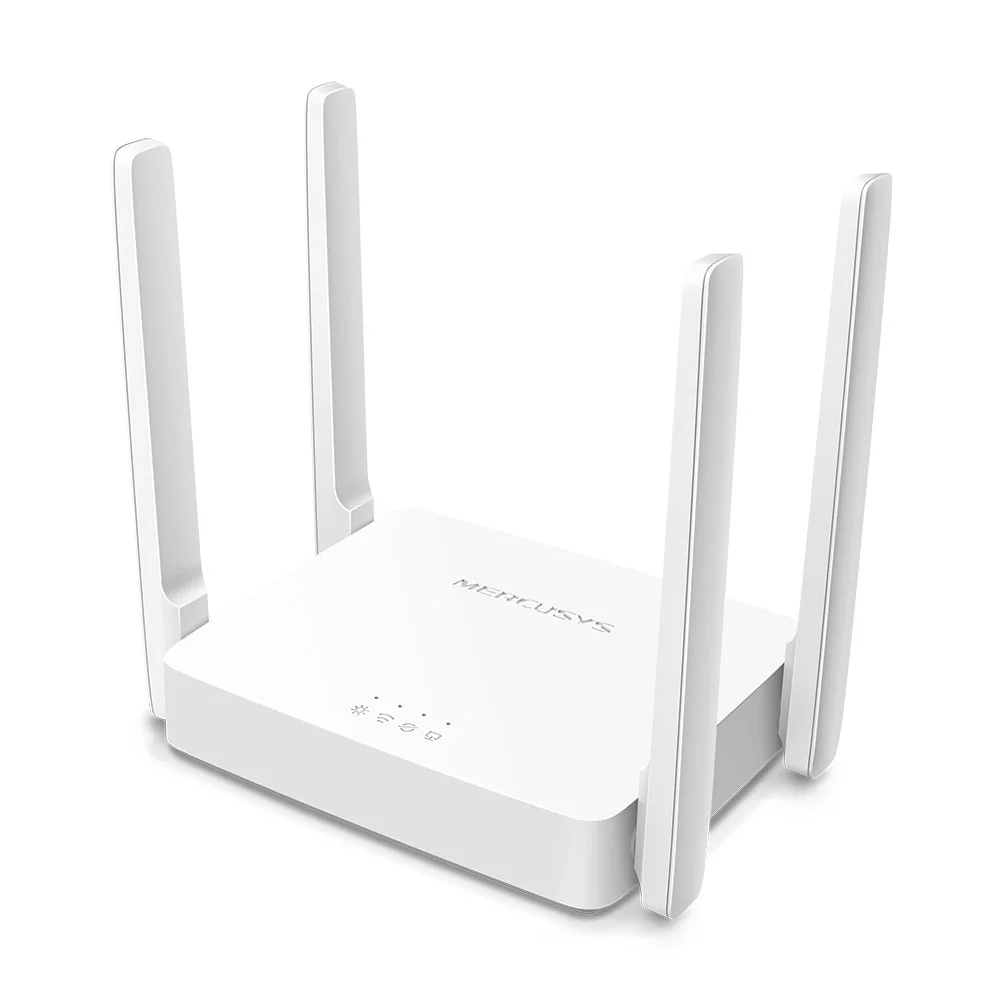

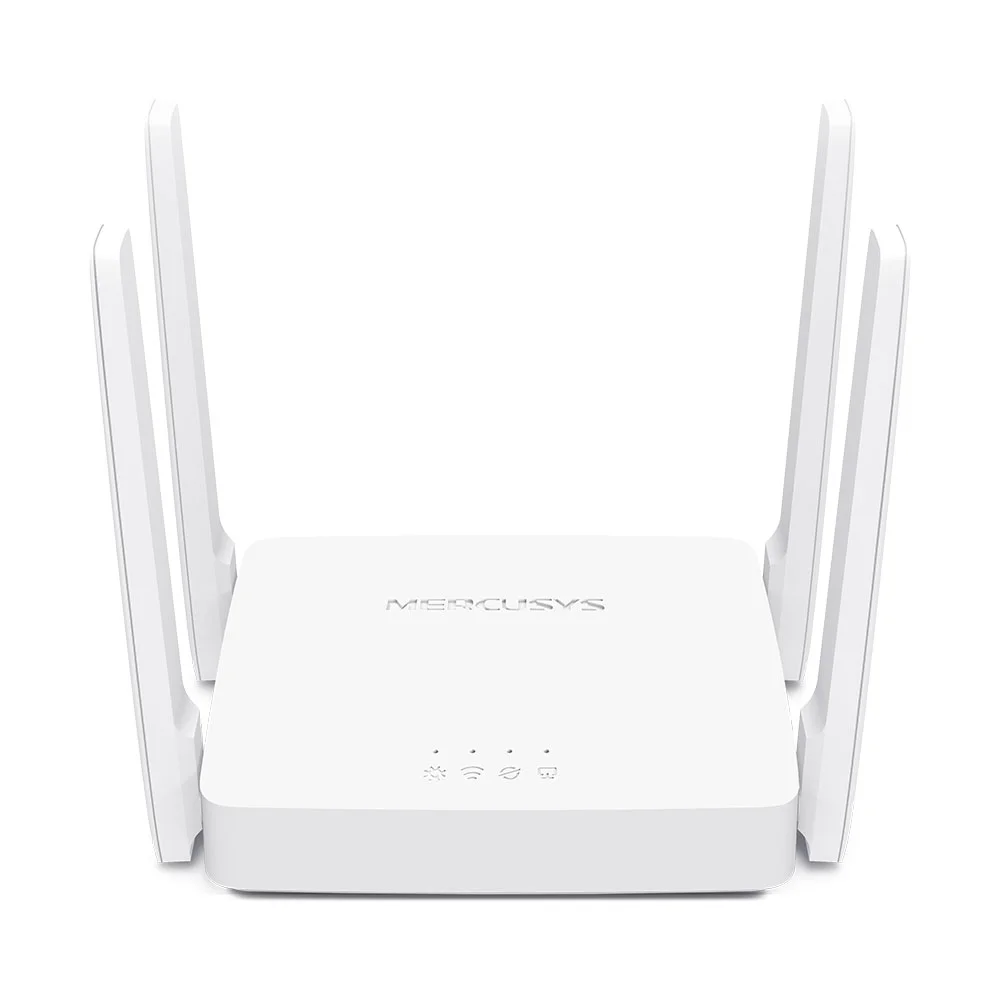

Equipped with four high-gain external antennas, the AC10 is designed to provide strong and reliable wireless coverage throughout your home. The 2.4 GHz band is suitable for web browsing, email, and everyday online activities, while the faster 5 GHz band is designed for bandwidth-intensive applications such as HD streaming and gaming.

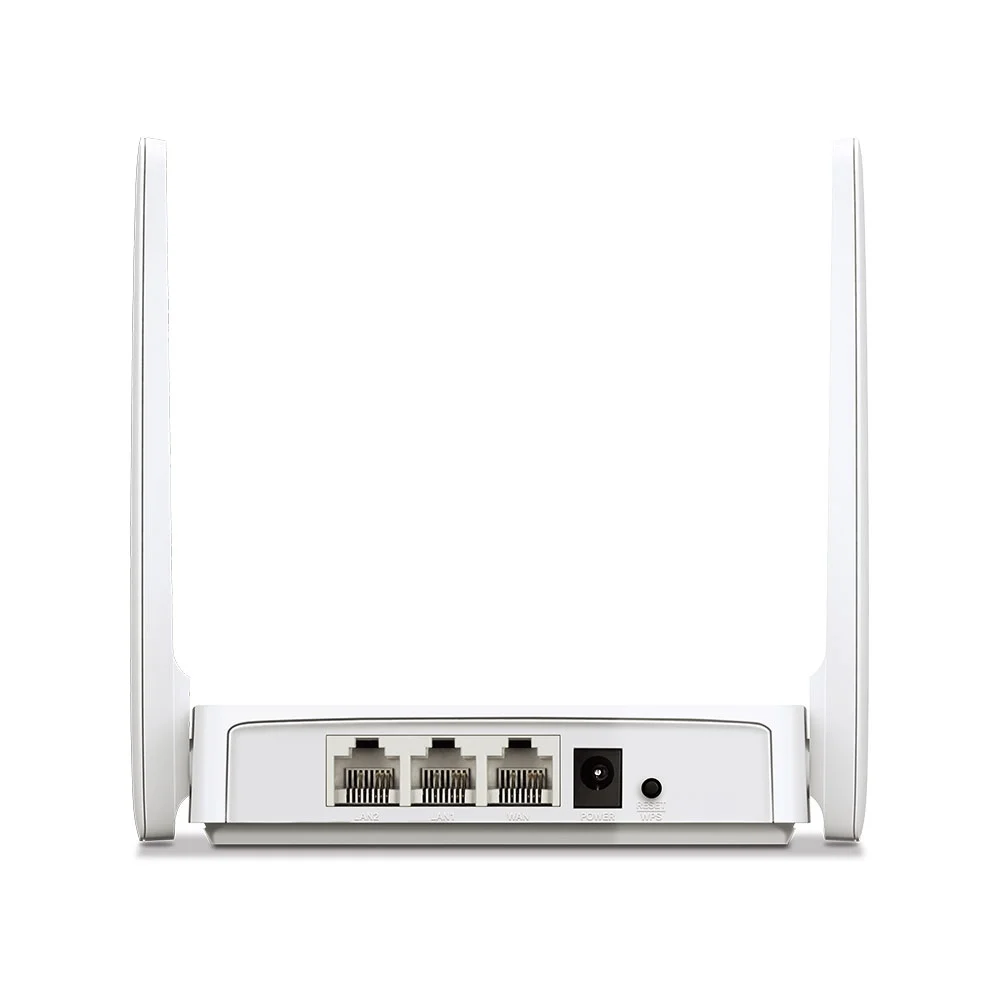

The AC10 supports Router and Access Point modes, along with features including guest networking, parental controls, access control, IPv4/IPv6 support, IPTV, and SPI firewall security. It also includes one 10/100 Mbps WAN port and two 10/100 Mbps LAN ports for wired connections.

With a straightforward web-based setup interface and support for the MERCUSYS app on compatible hardware and firmware versions, the AC10 offers a practical networking solution for connected homes.

Key Features

• AC1200 dual-band Wi-Fi
• Up to 300 Mbps on 2.4 GHz
• Up to 867 Mbps on 5 GHz
• IEEE 802.11ac/n/a on 5 GHz
• IEEE 802.11b/g/n on 2.4 GHz
• 4 high-gain external antennas
• Supports Router and Access Point modes
• Guest network for both 2.4 GHz and 5 GHz bands
• Active parental controls
• Access control and remote management
• SPI firewall security
• IPv4 and IPv6 support
• IPTV support
• 1× 10/100 Mbps WAN port
• 2× 10/100 Mbps LAN ports
• WPS/Reset button
• MERCUSYS app support on compatible hardware and firmware versions

Specifications

Brand: MERCUSYS
Model: AC10
Product Type: AC1200 Wireless Dual Band Router
Wi-Fi Class: AC1200
Wireless Standards: IEEE 802.11ac/n/a (5 GHz), IEEE 802.11b/g/n (2.4 GHz)
Frequency: 2.4 GHz + 5 GHz
2.4 GHz Speed: Up to 300 Mbps
5 GHz Speed: Up to 867 Mbps
Max Channel Width: Up to 80 MHz
Antennas: 4× 5 dBi Fixed Omni-Directional External Antennas
WAN Port: 1× 10/100 Mbps
LAN Ports: 2× 10/100 Mbps
Security: WEP, WPA/WPA2-Personal, WPA2/WPA3-Personal
Operation Modes: Router Mode, Access Point Mode
WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
Firewall: SPI Firewall
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
Power Supply: 9V/0.85A
Dimensions: 114 × 94 × 26 mm
Operating Temperature: 0°C–40°C
Operating Humidity: 10%–90% non-condensing

Compatibility

The MERCUSYS AC10 is compatible with devices supporting standard 2.4 GHz and 5 GHz Wi-Fi networks, including:

• Smartphones and tablets
• Laptops and desktop computers with compatible Wi-Fi adapters
• Smart TVs and streaming devices
• Gaming consoles and compatible gaming devices
• Printers and other Wi-Fi-enabled peripherals
• IoT and smart home devices compatible with 2.4 GHz or 5 GHz Wi-Fi

The router also supports Ethernet-connected devices through its WAN and LAN ports.
