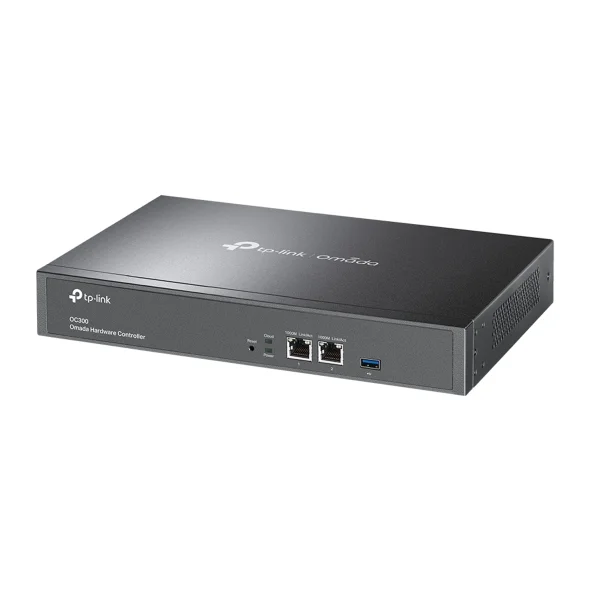

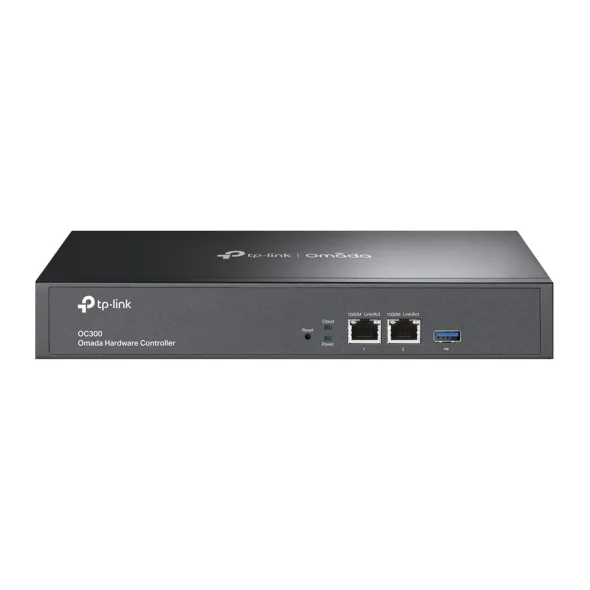

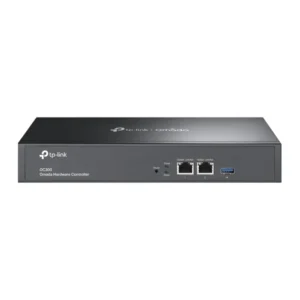

TP-Link Omada OC300 Hardware Controller is a professional on-premises network controller designed to provide centralized management for compatible Omada access points, switches, gateways, and other supported networking devices. It allows network administrators to configure, monitor, and manage an Omada network from a unified interface without the need to keep a dedicated PC or server running as the controller.

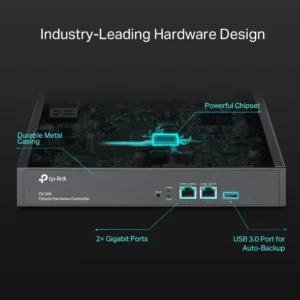

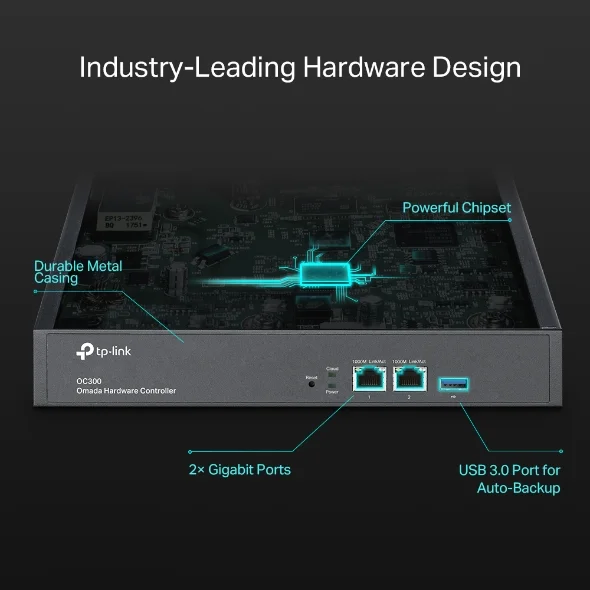

The OC300 features a quad-core ARM Cortex-A72 processor running at 1.2GHz, 2GB DDR4 memory, and 8GB eMMC storage, providing a dedicated hardware platform for Omada network management. It includes two Gigabit Ethernet ports and one USB 3.0 port, with the Ethernet interfaces used for network connectivity and controller access.

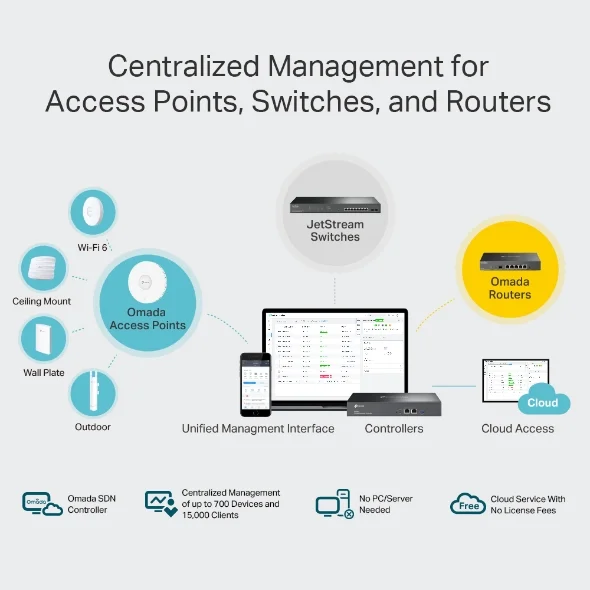

With Omada’s centralized management platform, administrators can configure supported wireless access points, switches, and routers from a single interface. The controller supports functions including automatic device discovery, batch configuration, batch firmware upgrades, unified configuration, network monitoring, abnormal-event notifications, captive portal configuration, and multi-site management.

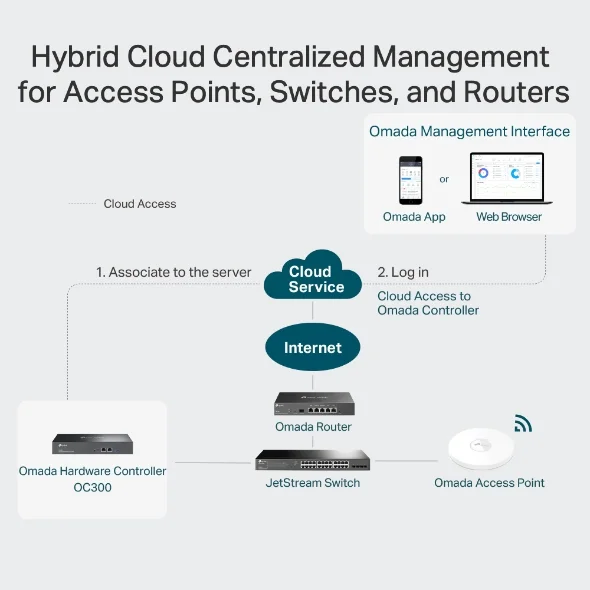

The OC300 also supports cloud access, allowing authorized administrators to remotely access and manage the controller through supported Omada services and applications. TP-Link positions the OC300 for small-to-medium networks as well as deployments in offices, schools, retail environments, hotels, and multi-site installations.
The controller can manage up to 500 Omada access points, 100 Omada switches, and 100 Omada routers, subject to the supported-device models and configuration. TP-Link also specifies support for up to 15,000 clients. The exact number of supported devices can vary with the supported Omada models and controller software version.
Key Features
- Professional Omada Hardware Controller
- Centralized management for compatible Omada networks
- Manages access points, switches, and routers
- Quad-Core Cortex-A72 1.2GHz processor
- 2GB DDR4 RAM
- 8GB eMMC storage
- 2 × Gigabit Ethernet ports
- 1 × USB 3.0 port
- Cloud access for remote network management
- Multi-site management
- Automatic device discovery
- Batch configuration
- Batch firmware upgrading
- Unified network configuration
- Intelligent network monitoring
- Abnormal-event warnings and notifications
- Captive portal configuration
- Omada App support
- Supports up to 500 APs, 100 switches, and 100 routers
- Supports up to 15,000 clients
- Rack-mountable design
- No dedicated PC/server required for controller operation
Specifications
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Product | Omada OC300 |
| Product Type | Hardware Network Controller |
| Platform | TP-Link Omada |
| Processor | Quad-Core ARM Cortex-A72 @ 1.2GHz |
| Memory | 2GB DDR4 |
| Storage | 8GB eMMC |
| Ethernet Ports | 2 × 10/100/1000 Mbps |
| USB | 1 × USB 3.0 |
| Cloud Access | Yes |
| Omada App | Yes |
| Multi-Site Management | Yes |
| Device Discovery | Yes |
| Batch Configuration | Yes |
| Batch Firmware Upgrade | Yes |
| Network Monitoring | Yes |
| Captive Portal | Yes |
| Maximum Access Points | Up to 500* |
| Maximum Switches | Up to 100* |
| Maximum Routers | Up to 100* |
| Maximum Clients | Up to 15,000 |
| Maximum Sites | 100 |
| Maximum Accounts | 1,000 |

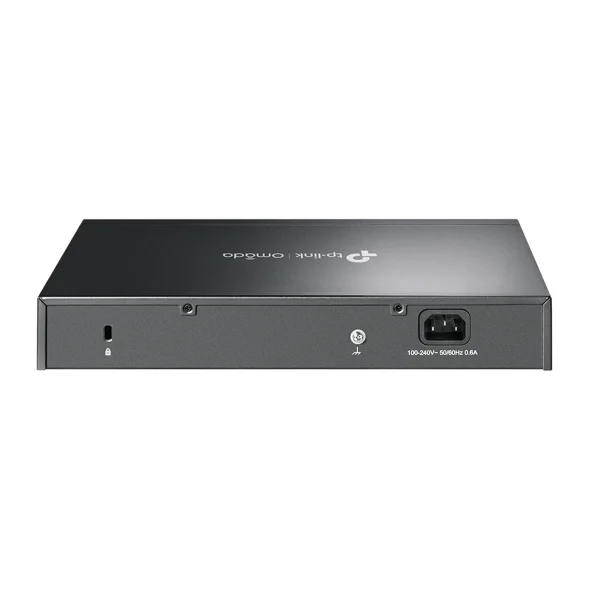

| Power Supply | 100–240V AC, 50/60Hz, 0.6A |
| Maximum Power Consumption | 9.0W without USB 3.0 / 14.8W with USB 3.0 |
| Dimensions | 294 × 180 × 44 mm |
| Rack Mount | Yes |
| Security Lock | Kensington Lock |
| Operating Temperature | 0–50°C |
| Storage Temperature | -40–70°C |
| Operating Humidity | 10–90% RH, non-condensing |
| Certifications | CE / FCC / RoHS |
| Included Accessories | Power Cord, Ethernet Cable, Rackmount Kit, Quick Installation Guide |
Compatibility
The TP-Link Omada OC300 is designed to centrally manage supported TP-Link Omada access points, switches, and routers. Compatibility is model-dependent, so supported-device lists should be checked before deploying the controller with a particular Omada product.
The controller connects to the local network through its Gigabit Ethernet ports and can be administered locally or through supported Omada cloud access. The Omada App can also be used for supported management functions.
The OC300 is particularly suitable for small and medium offices, schools, hotels, retail locations, and multi-site business networks where centralized management of multiple Omada devices is required.
